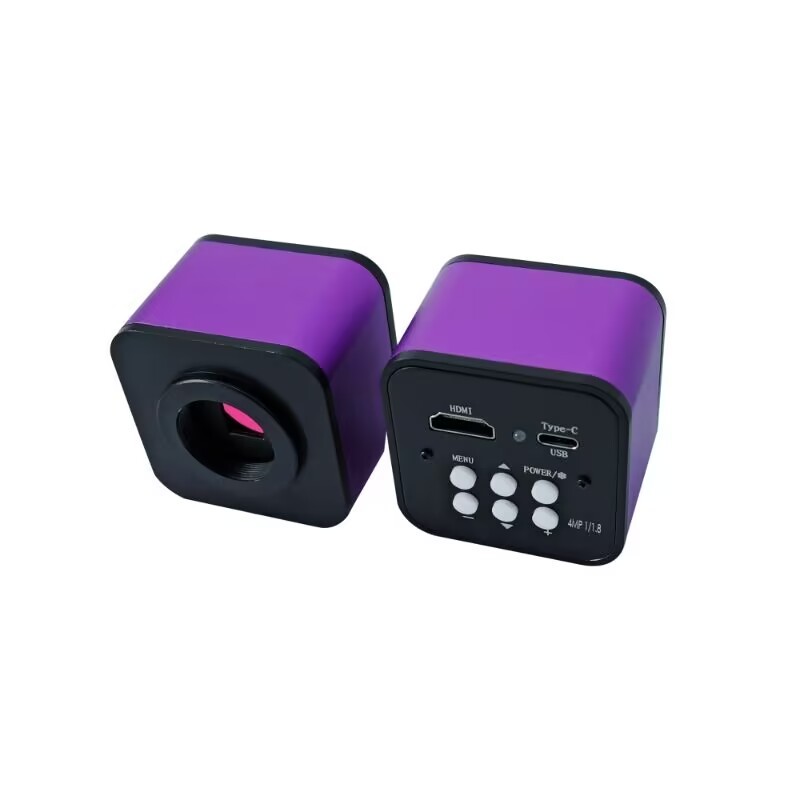

4MP HDMI VGA Microscope Camera with Type-C

pecification

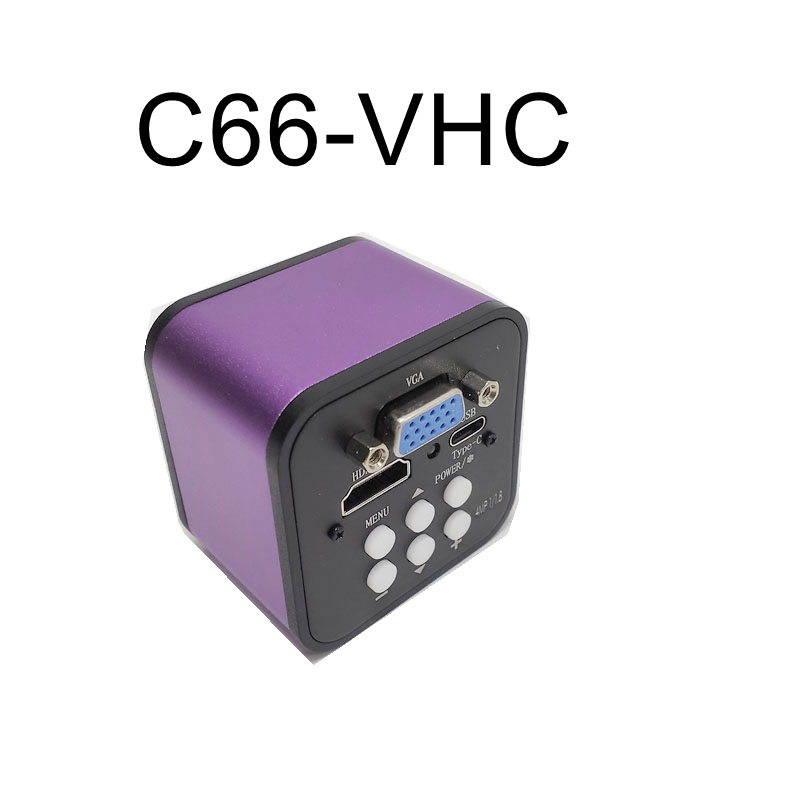

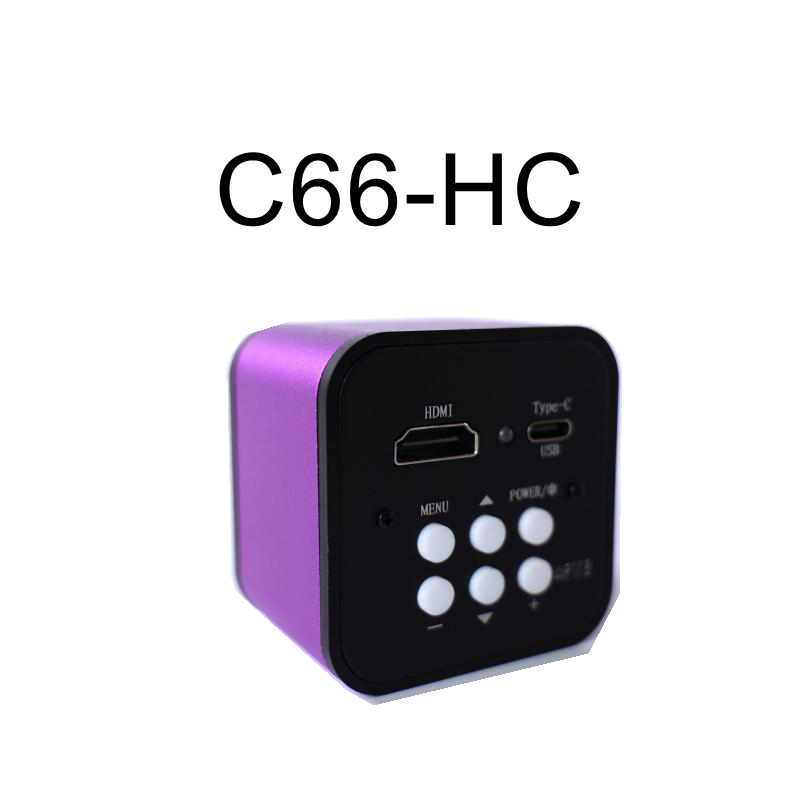

Model	C66-VHC	C66-HC
Sensor	CMOS
Sensor size	1/1.8"
Effective pixel	2688*1520
Pixel size	2.9*2.9μm
Sharpness	Above 1000TV lines
Scan mode	Progressive
Shutter mode	Rolling shutter
Max. frames per second (fps)	60fps
Dynamic range	87dB
SNR	42dB

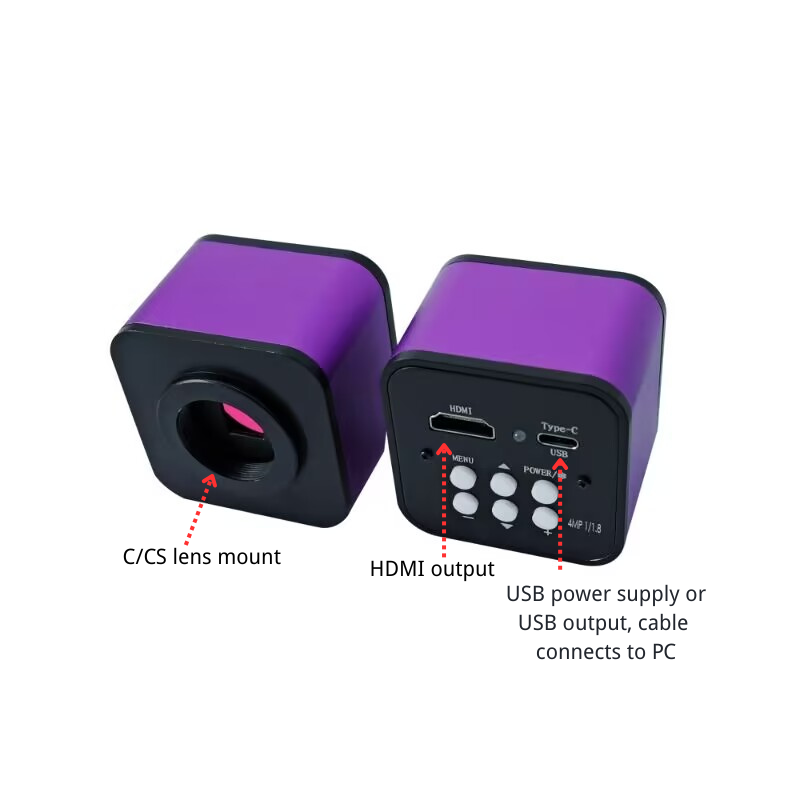

Output interface	HDMI,VGA & Type C	HDMI & Type C

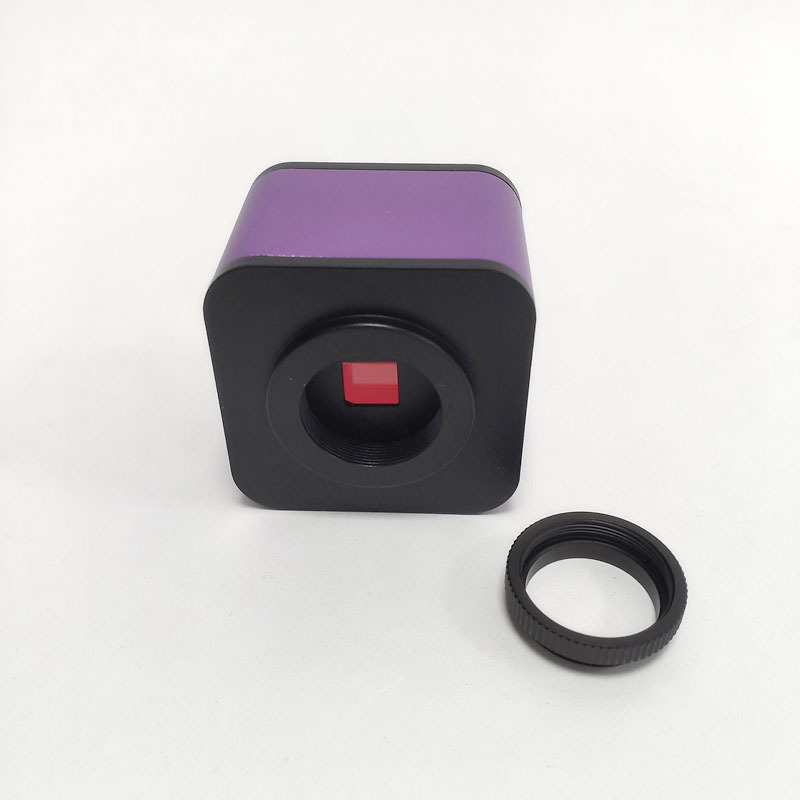

Lens mount	C/CS mount
Functions	30 groups of crosshairs; Scale ruler,cebter cyrsir, central line; Low light scene mode; 3D noise reduction; Type C can be connected to computer for UVC camera
Power supply	DC 5V/1A
Product size	555558mm

Outstanding features
- With an effective resolution of 2688 × 1520 pixels, the camera provides significantly more detail than standard 1080P imaging systems.
- Supporting up to 60 frames per second, the camera delivers fluid and responsive live imaging.
- The camera supports multiple output options for maximum flexibility. This versatile connectivity makes the camera suitable for both standalone and PC-based imaging workflows.
- The camera supports both automatic and manual white balance adjustment to ensure accurate color reproduction under different illumination conditions.
- Built-in 3D noise reduction technology effectively minimizes image noise while preserving fine details.
- The dedicated low-light mode enhances image visibility in environments with insufficient illumination.
- Integrated reference tools provide additional visual assistance during observation and inspection.
- The cameras are commonly applied in:
Electronics Inspection and Repair
Industrial Quality Control
Scientific Research
Education and Training
Medical and Biological Observation

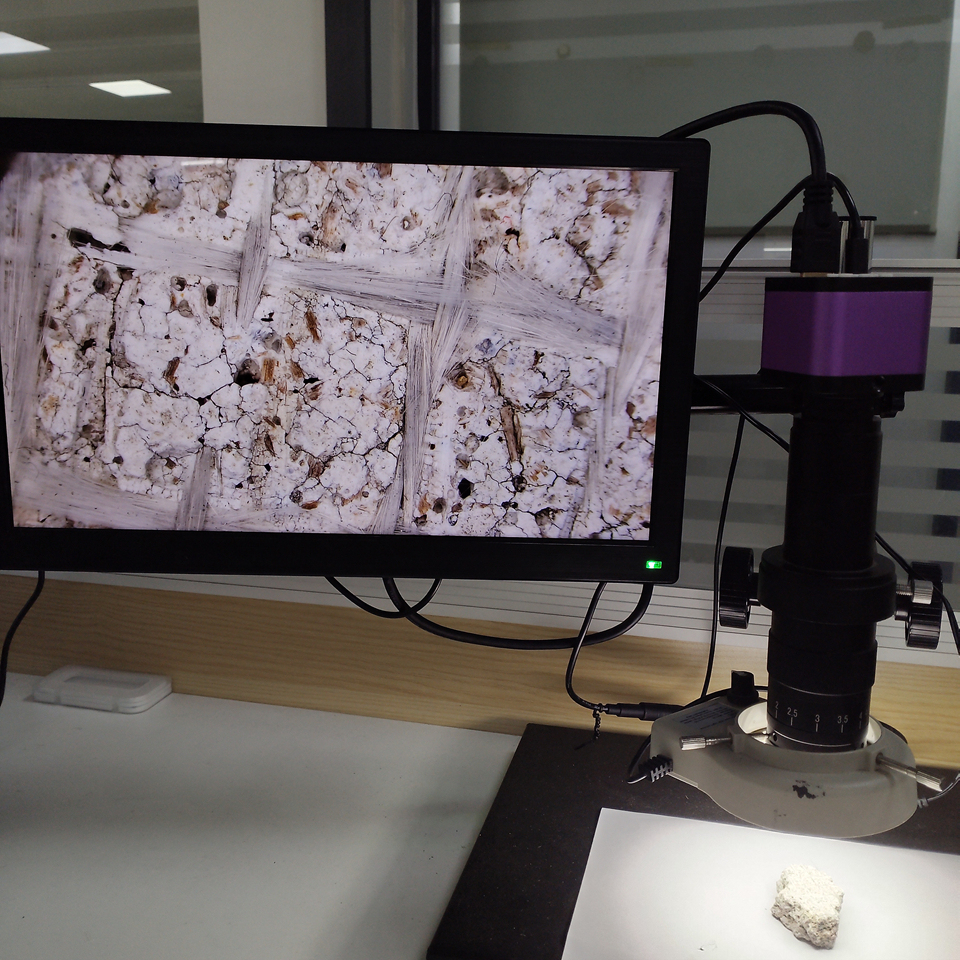

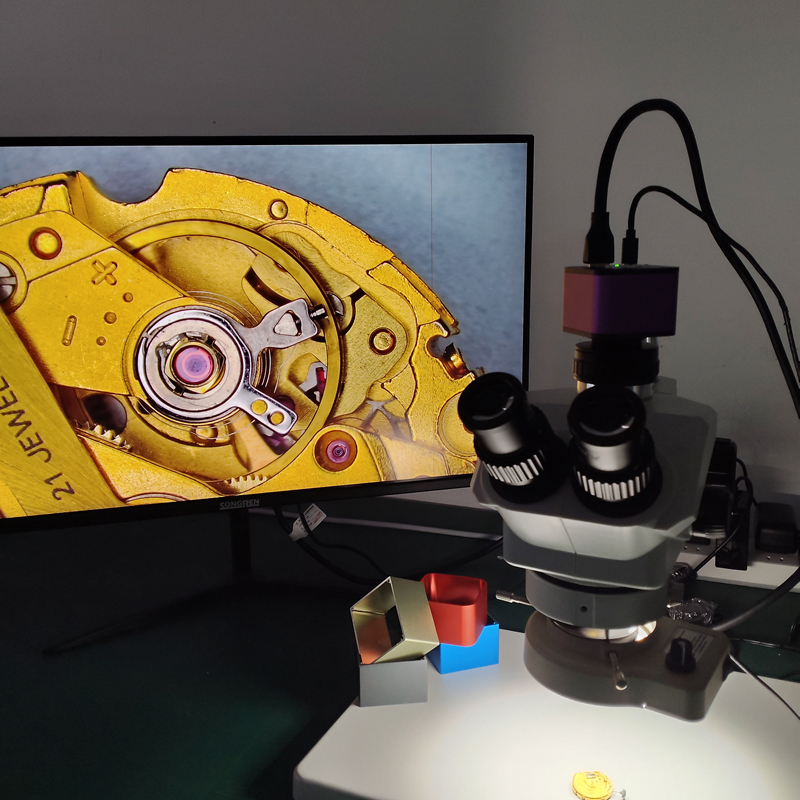

Application scenario

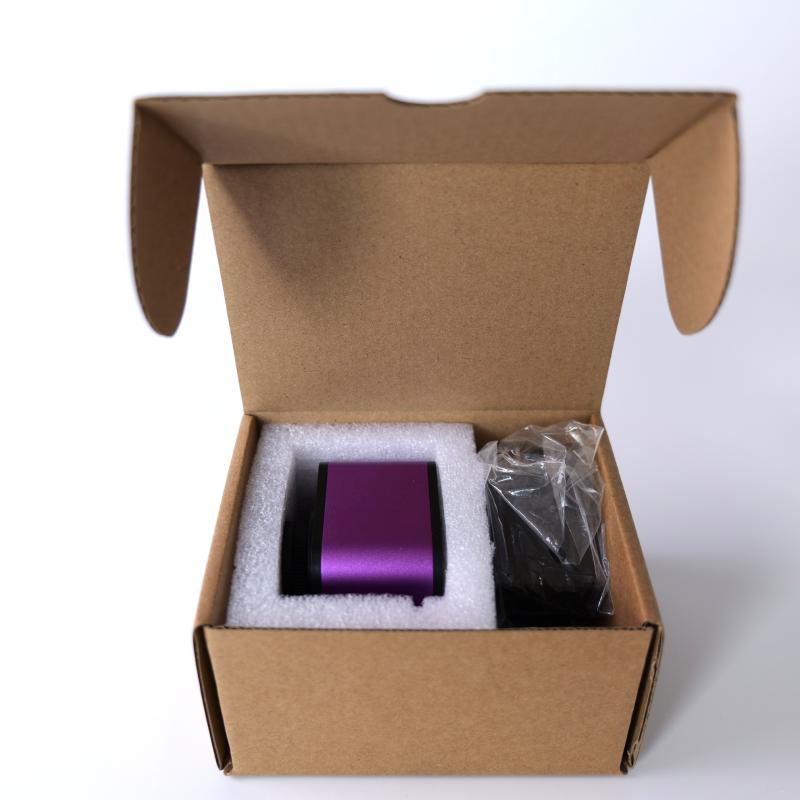

Packaging including

1: 1 x Camera

2: 1 x Power Supply (EU, US and UK adapter for choice)

Product Advantages

Structural and System Integration Benefits

The combination of HDMI, VGA, and Type-C interfaces allows seamless integration with monitors, computers, and microscope systems. Its versatile architecture supports both standalone viewing and computer-based image acquisition, making it suitable for industrial, laboratory, educational, and research environments.

Enhanced Performance and User Operation

Featuring a 4MP sensor with 2688 × 1520 resolution, smooth 60FPS output, advanced 3D noise reduction, and low-light optimization, the camera delivers reliable image quality across a wide range of inspection conditions. Combined with customizable overlays and positioning tools, it helps users improve accuracy, streamline workflows, and increase productivity.

FAQ

Can this microscope camera connect to both a monitor and a computer?

Yes. The camera supports HDMI and VGA outputs for direct connection to monitors, and a Type-C interface for connecting to a computer. When connected to a PC, users can capture images, record videos, and manage inspection data efficiently.

What are the advantages of the 60FPS frame rate?

The camera supports up to 60FPS real-time imaging, providing smooth and responsive image display with reduced motion blur. This is especially beneficial for PCB inspection, electronics repair, sample positioning, and precision assembly applications.

How does the 3D Noise Reduction and Low-Light Mode improve image quality?

The 3D Noise Reduction function minimizes image noise while preserving fine details, resulting in cleaner and sharper images. The Low-Light Mode enhances brightness and visibility in insufficient lighting conditions, making it easier to observe details without increasing image grain.

Is this microscope camera suitable for PCB inspection and electronics repair?

Yes. With a 4MP resolution of 2688 × 1520, smooth 60FPS imaging, customizable crosshairs, scale overlays, 3D noise reduction, and low-light enhancement, the camera is well suited for PCB inspection, solder joint analysis, electronics repair, and precision assembly tasks.

4MP 60FPS Digital Microscope Camera with HDMI VGA and Type-C Interface
